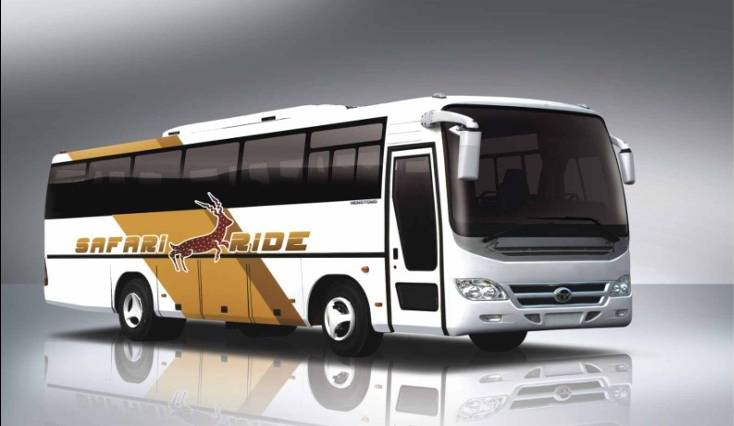

The Used Coach Bus Golden Dragon DF6101 is suitable for the passenger and traveling, without any traffic accidents, 2009 year ,Euro III Emission Standard with low price and great performance
| Specification | ||||||
| Overall Specification | Over length(mm) | 10495 | Engine Specification | Engine Model | EQB210 20 | |
| Cummins engine | ||||||
| Over width(mm) | 2500 | Engine Type | in line, 6 cylinder,inter-cooling, directly injection | |||
| Over height(mm) | 3500 | Displacement(L) | 5.2 | |||
| Wheelbase(mm) | 5000 | |||||
| Tread(mm) | 2020/1840 | Max. output (kw/rpm) | 155/2500 | |||
| Overhang F/R(mm) | 2250/3245 | Max.torque (N.M/ rpm) | 702/1500-1600 | |||
| Approach/Departure Angle (°) | 11/9 | Fuel Type | Diesel,EuroII | |||
| Performance Specification | Chassis Model | Dongfeng | Max. speed(km/h) | ≥100 | ||
| Max. grade ability(﹪) | ≥25 | |||||
| Min. turning diameter(m) | ≤22 | |||||
| Engine Position | Front | Fuel Tank Capacity(L) | 300 | |||
| Brake distance (v=30km/h) | ≤10 | Luggage Compartment(m3) | 8 | |||
| Max. total mass(kg) | 14000 | |||||
| Curb Weight(kg) | 10500 | Axle F/R(kg) | 5000/9000 | |||
| Item | Standard Equipment | |||||
| Chassis | Clutch | Φ395 Single Dry Plate ,Hydraulic Control,Pneumatic Assist | ||||
| Transmission | FAST Brand 6 forward speed and 1 reverse speed | |||||
| Rear Axle | 9T, casting Axle housing, Full Floating Semi-Shaft | |||||
| Front Axle | 5T,integral “T”type, forging steel part, | |||||
| Frame | press riveted joint structure | |||||
| Suspension | Multi Leaf Spring(F 10/R 10), bidirectional function hydraulic canister shock-absorber and horizontal stabilizing | |||||
| Steering System | Integral power steering,adjustable steering wheel(front, back, up and down),Left hand drive | |||||
| Brake System | dual circuit pneumatic brake, parking braking, energy storage spring brake-away brake, brake clearance adjustable arm, ABS | |||||
| Tire | 11.00R20 11.00R20 Radial tyre | |||||
| Wiring | 24V,single wire, cathode ground connection | |||||
| Starter | electromagnetism control type | |||||
| Battery/Generator | 6-Q-180Ah 2PCS / 28V/70A | |||||
| Others | NONE | |||||
| Interior Trimming | Body Structure | Semi-Integral body, Cold-bent steel frame, Pre-stress Stretched Panel Skin, flat floor | ||||
| Three-ply board for roof and side wall, softening interior fitting, two airway, standard, inner luggage carrier, | ||||||
| Interior Trimming | ||||||
| Door and Door Pump | Front Single outward swing door | |||||
| Windows | Cementation right-angle pull-push side window, front laminated windscreen,rear toughened fibre glass | |||||
| Floor | Flat floor, color leather floor | |||||
| Seat | 45+1 seats high backrest, adjustable driver seat | |||||
| A/C System | Tianxi brand, top mounted dependent A/C,26000Kcal,fresh air device. | |||||
| Heating System | NONE | |||||
| Defrosting system | Natural wind defrosting | |||||
| Audio&Visual System | DVD(single disk),one 17 inch electrical folding LCD | |||||
| Rearview System | Manual Rear Mirror | |||||
| Lamp | Combination headlamp and tail lamp | |||||
| Wiper | Opposite wiper | |||||
| Service Facilities | electric clock, fire extinguisher, driver rolling curtain, curtain for side windows, driving recorder, one roof windows with ventilator | |||||
| Others | Domestic paint | |||||
| Remarks | The above is standard configuration, we will make configuration according to your special requirement. | |||||
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
