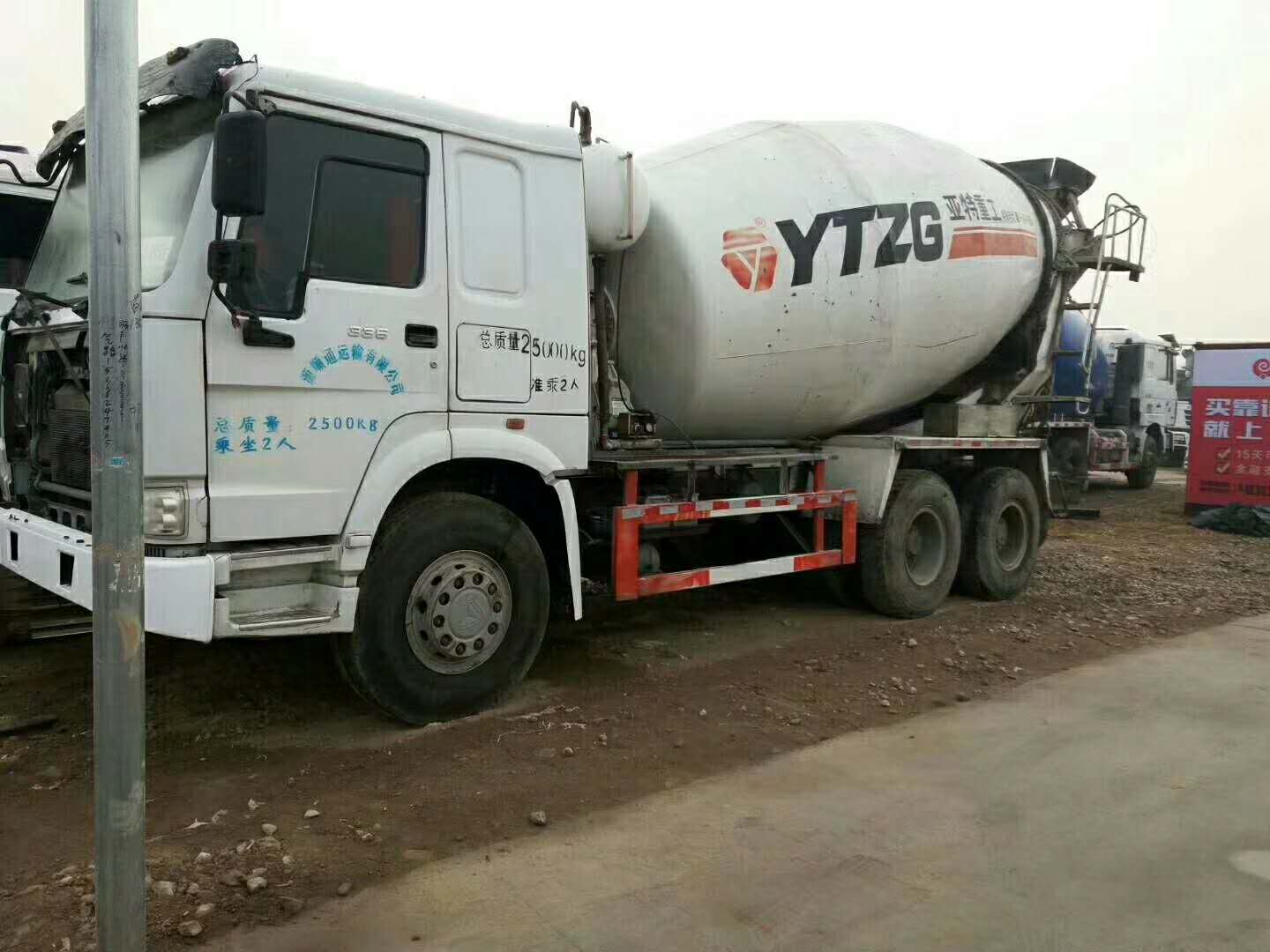

Second hand 10m3 YATE-HOWO Concrete Mixer Truck

Condition:
Used
Year:
2012-2015
Emission:
Euro III
Drive form:
6X4
Rated power:
340hp,rated power speed 1900rpm
leave a message

Related products



Euro III Emission, 6X4 Drive form and 340hp Rated power Second hand YATE-HOWO Concrete Mixer Truck could be used in kinds of construction.



Vehicle parameters
Vehicle ModelTZ5257GJBZE3EAVehicle BrandYate
Overall dimensions10370x2496x3998mmCurb weight16100kg
Loading capacity10m3



Chassis parameters
Chassis modelZZ1257N4347E1Chassis brandHOWO
Overall dimensions10370x2496x3998mmWheel base4025+1350mm
Front/rear wheel track2022/1830/1830mmFront/rear suspension1500/3195mm
Approach/departure angle16/11°Maximum speed80km/h
Chassis ManufacturerSINOTRUK

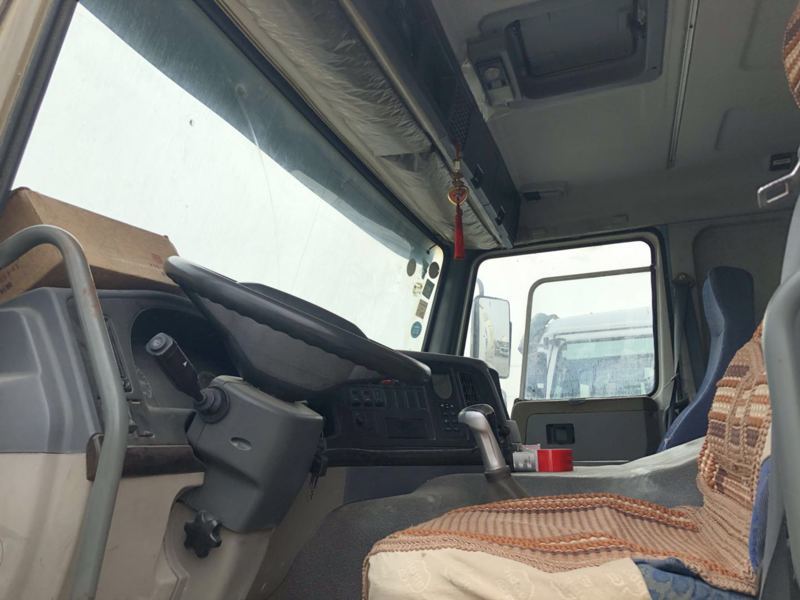

CabConfigurationF3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control
ColorWhite,other color is optional
EngineModelD10.34-50
EmissionEuro III
Type4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power340hp,rated power speed 1900rpm
Displacement9726ml
Max.torque1490N.m
Bore x stroke126x130mm
ManufacturerWeichai Power Co., Ltd.
TireSize12.00R20 steel wire tire
Number10 nos
ClutchEaton φ430 diaphragm clutch
Fuel tank380L aluminium alloy
Front axleMAN, 7.5 tons disc type
Rear axleMAN,16 tons casting bridge,main reduction ratio 5.262
Drive form6x4
Rated voltage24V,DC
TransmissionsFAST 12JSD160TA,12 speed forward 2 reverse.
Steering devicePower assisted steering,steering machine
Steering wheelLeft hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard



Concrete mixer truck structure parameters
Mixing capacity(m³)10Color and LogoOptional
Feeding speed (m³/min)≥8Discharge speed(m³/min)≥5
Discharge residual rate≤0.5%Slump scope(mm)50-210
Water tank capacity(L)400LWater pressure(Mpa)0.35-0.38
Tank material5mm alloy steelTank front head8mm alloy steel
ReducerZF3301Hydraulic motorGermany REXROTH
Hydraulic pumpGermany REXROTHRadiatorKAIPENG
Standard configurationchassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.
Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor.



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
