Parameter | Bus model | CPBCC01 |
Engine model | EQB125 20 |
Dimension(mm) | 5875*2240*2780/2890(A/C) |
G.V.W.(kg) | 6500 |
Luggage compartment(M3) | 0-0.5 |
Max. speed(km/h) | 90 |
Chassis | Chassis manufacturer | Zhengzhou yutong bus Co., Ltd. |
Clutch | Outer diameter of friction lining 362, hydraulic remote control with air assistance |
Gearbox | 5-speed manual gearbox |
Brake system | Dual circuit pneumatic brake, energy storage spring parking brake |
Suspension system | Leaf spring, bidirectional telescopic shock absorber |
Tire | 7.00R16 |
Fuel tank (L) | 90 |
LHD/RHD | LHD/RHD |
Others | - |
Body | Seats | 22+1 |

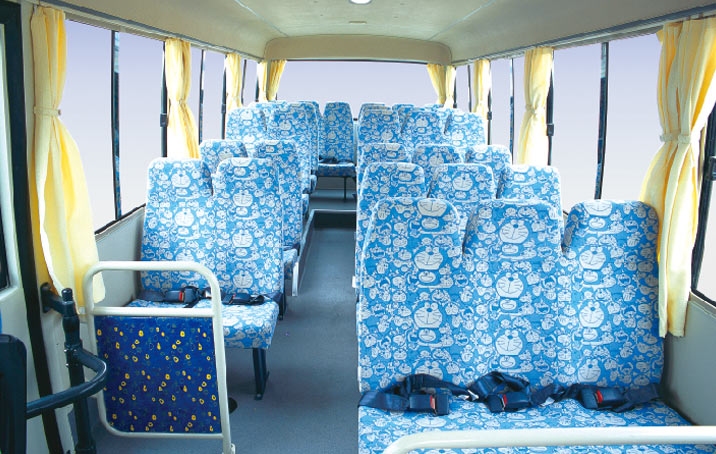

Interiors | No luggage rack |
Air conditioner (A/C) | Non-independent roof-mounted A/C (16000kcal/h) |
Heating system | None |
Audio & video system | SD memory card player, 15" LCD monitor in the front |
Service parts | Optional: electronic clock |
Other facilities | Windshield wiper, driver door |
