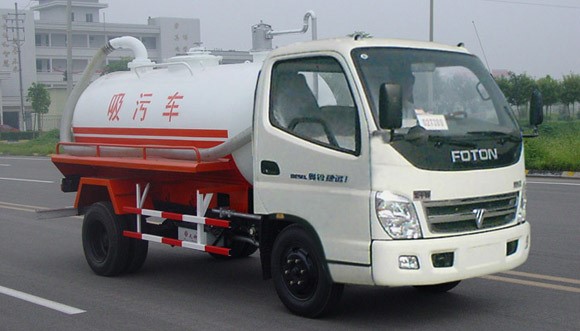

Foton mini sewage sucking truck Technical Parameters | |||
| Product： | Foton mini sewage sucking truck | Overall dimension： | 5980×2020×2580 (mm) |
| Chassis model： | CPSS01 | Compartment dimension： | ×× (mm) |
| Gross weight： | 4400 (kg) | Approach angle/Departure angle： | 18/14 (°) |
| Rated payload： | 1350 (kg) | Front/rear suspension： | 1100/1680,1100/1520 (mm) |
| Kerb weight： | 2855 (kg) | Max speed： | 90 (km/h) |
| Engine： | CA4DC2-10E3 CY4102-C3F 4D26 YN33CR 4DW93-84E3 YC4F90-30 YZ4DA4-30 | ||
| Displacement： | 3168 3856 2596 3298 2540 2659 3660 (ml) | Power： | 76 70 68 76 67 66 70 (kw) |
| Manufacturer： | FAW Dalian diesel Engine Branch/Anhui Quanchai Power Co., Ltd./Kunming Yunnei Power Co., Ltd./FAW Wuxi Diesel Engine Co./Guangxi Yuchai Co., Ltd./Yangzhou Diesel Engine Co., Ltd. | ||
| Emission standard： | GB17691-2005 Euro 3, GB3847-2005 | ||
| Axle nos： | 2 | Front tread： | 1590 (mm) |
| Wheelbase： | 3200,3360 (mm) | Rear tread： | 1525 (mm) |
| Tyre nos ： | 6 | Tyre specification： | 7.00-16,6.50-16,7.00R16,6.50R16 |
| Fuel type： | Diesel | Leaf spring nos： | 4/6+7 |
| Axle load： | 1760/2640 | Passenger nos | 3 |
| Remarks： | Transport media: liquid sewage,density:0.8t/m3. Tank volume:：1.77 m3, tank dimension(mm): length×dia3000×920 | ||
| More pictures： | |||
Please contact us if you want more product information, we are ready to provide service for you！ | |||
