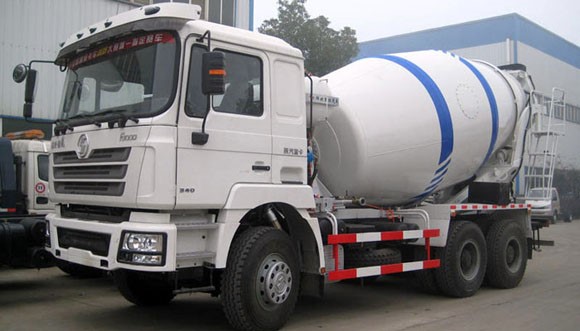

Sanqi Delong Concrete Mixer Truck
| Vehicle model | CPCM01 Concrete Mixer Truck | |||||||||
| Chassis model | SX5255GJBDR384 | |||||||||
| Overall dimensions | mm | 9135×2490×3810 | ||||||||
| Fact cubage | m3 | 6.0 | ||||||||
| Mass in working order | kg | 13170 | ||||||||
| Wheel base | mm | 3800+1350 | ||||||||
| F/R track base | 1939/1850 | |||||||||
| Approach/departure angle | ° | 20/18 | ||||||||
| Exhaust/hp | ml/kw | 9726/247，9726/213 | ||||||||
| Max speed | km/h | 77 | ||||||||
| Tire specification | 12.00-20,11.00-20, 11.00R20,12.00R20 | Engine type | WP10.336， WP10.290 | |||||||
| Traction system | 6×4 | Transmission | 9-speed | |||||||
| Number of axles | 3 | Electric system | 24v | |||||||
| Operation control system | Power Steering | Allowable passengers in cab | 3 | |||||||
| Equipment | Mixing Drum | Geometric volume | 9.23m3 | |||||||
| Mixing volume | 6m3 | |||||||||
| Filling ratio | 0.63％ | |||||||||
| Speed of In | 1.2M³/min | |||||||||
| Speed of Out | 0.8M³/min | |||||||||
| Tilt angle | 13° | |||||||||
| Hydraulic System | Oil pump | Type | America Eaton ACA 5423 | |||||||
| Max working pressure ×Exhaust | 415BAR/89.13cc/r | |||||||||
| Motor | Type | America Eaton HHD 5433 | ||||||||
| Max working pressure ×Exhaust | 415BAR/89.13cc/r | |||||||||
| Reducer | Type | Bonfiglioli 577 | ||||||||
| Deceleration ratio | 100:1 | |||||||||
| Radiator | Type-Fuel tank capacity | Jiangsu Changzhou-18L | ||||||||
| Water supply system | Water forms | Pressure water tank | ||||||||
| Water tank capacity | 350L | |||||||||
| Engine | Weichai Diesel Engine (Europe Ⅱ), Weichai Diesel Engine (Europe Ⅱ) | |||||||||
| Production cycle | 20-25days | |||||||||
| Warranty | 12 month, from the date of supply | |||||||||
