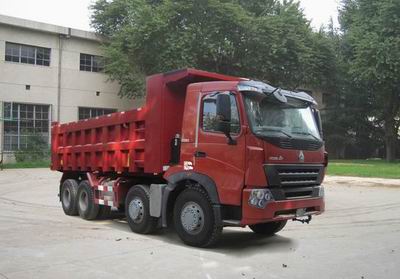

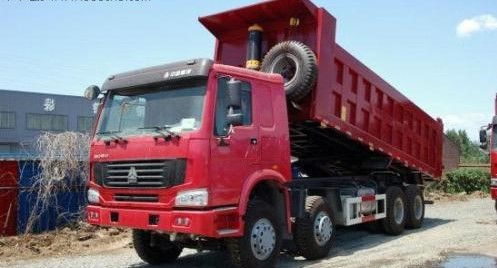

8x4 380HP dump Truck
- Condition:
- Second hand
- Year:
- 2013-2016
- Overall Dimensions(mm):
- 10940*2496*3500mm
- Emission:
- EURO IV
- Horse Power:
- 380 HP
2015 year,EURO IV Emission and 8x4 Drive mode Used 380HP dump Truck could be used in kinds of circumstances.
Truck Model | ZZ3317N4267P1 | |||
Truck Brand | SINOTRUK—HOWO A7 | |||
Dimension(Lx W xH)(unloaded)(mm) | 10940*2496*3500 | |||
Driving Type | Left Hand Driving | |||
Cargo body size (L*W*H, mm) | 7800*2300*1700 30M3 bottom:8mm,side:6mm | |||
Lifting Type | Front Side Lifting | |||
Cylinder | CHINA BRAND | |||
Approaching angle/Departure angle(°) | 20/24 | |||
Overhang(front/rear) (mm) | 2022/2022 | |||
Wheel base (mm) | 1950+4225+1350 | |||
Curb weight(kg) | 15460 | |||
Persons in cab(persons) | 2 | |||
Gross vehicle weight(kg) | 31000 | |||
Max speed(km/h)(km/h) | 80 | |||
Engine Model (Steyr technology, made in China) | D10.38-40 water-cooled,four strokes,6 cylinders in line with water cooling, directly injection | |||
Fuel type | Diesel | |||
Horse Power, max(kw/rpm) | 380HP | |||
Emission | EURO IV | |||
Fuel tanker capacity (L) | 300 | |||
Transmission Model | HW19710 10 forwards and 2 reverse | |||
Steering Model | 8118 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type. | |||
Clutch | single disc, dry type, diaphragm spring ;φ430 φ430 | |||
Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Auxiliary brake | The engine exhaust brake (EVB) | |||
Front axle | HF9 Disc Steering with double T-cross section beam | |||
Rear axle | HC16 Casting axle housing, central double reduction with differential locks between axles and wheels | |||
Color | White, Red, Yellow. according to the customer | |||
Tyre | 12.00R20 NO.12+1 Pieces | |||
Electrical system | Battery | 2X12V/180Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | A7-P standard cabin, two seats and single bed with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
