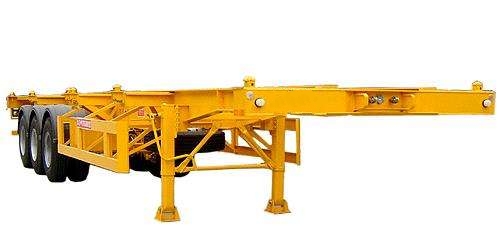

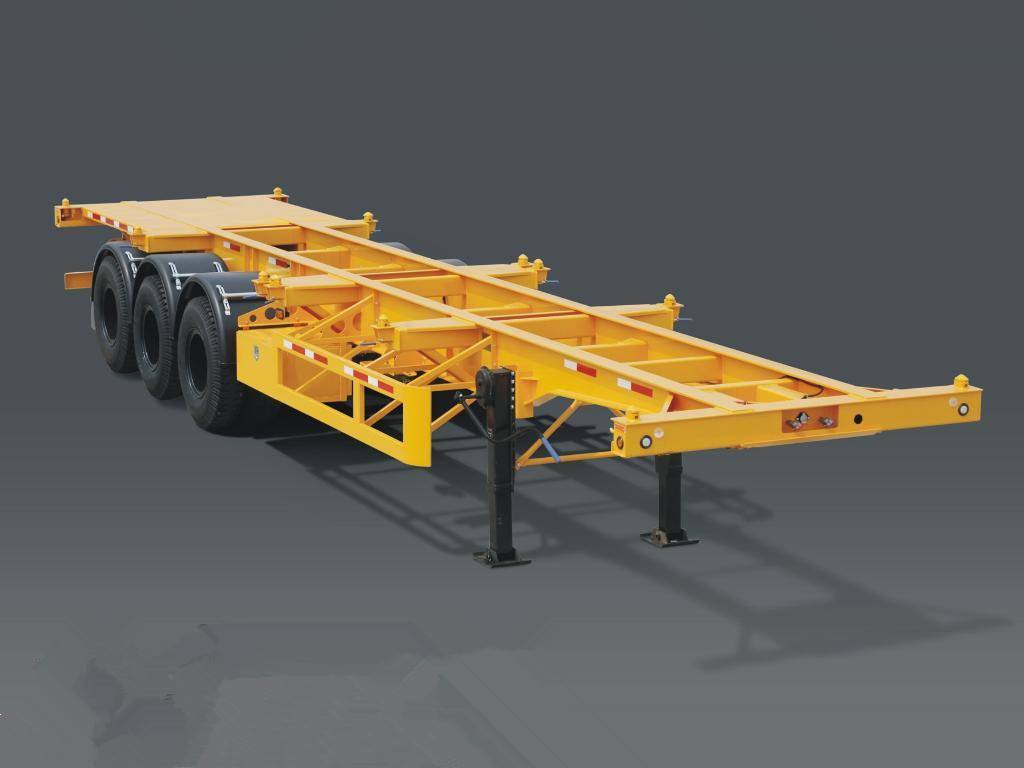

2* 13 tons capacity Second hand Skeleton semi trailer
- Condition:
- Used
- Year:
- 2013-2015
- Axle:
- 2* 13 tons capacity, YORK brand
- Outside dimension:
- 6850*2500*1400 mm
- Tire specs:
- 11R22.5, Aeolus brand
Related products
2* 13 tons capacity, YORK brand Axle and 6850*2500*1400 mm Outside dimension Second hand Skeleton semi trailer could be used in kinds of constructions.
| Type: | Skeleton semi trailer | |
| Dimensions: | Outside dimension | 6850*2500*1400 mm (The final dimensions depend on the final design drawings) |
Frame: | Design/welding technology | Heavy duty and extra durability designed; |
Main beam | high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 14mm, Bottom Flange thickness 16mm, Middle Flange thickness 8mm; | |
OEM parts: | Axle | 2* 13 tons capacity, YORK brand |
| King Pin | 2.00’’(50#) bolting king pin | |
| Suspension | Two-axle suspension with equalizers, American design | |
| Steel Spring | Four sets of 10pcs leaf spring | |
| Twist Locks | 4 units ISO twist locks | |
| Landing legs | 28 tons manual operation landing legs with sand shoe | |
| Tire specs | 11R22.5, Aeolus brand | |
| Rim | 8.25-22.5 | |
| Number of wheel | 8 pieces | |
Brake system | Four double brake chamber; Two units of reliable local brand standard coppery air-connector. | |
| Electrical: | One unit of 24V 7-pin ISO socket; LED light | |
Miscellaneous: | Painting | Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Note: All the details not mentioned should comply with Chinese regulations. | ||
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
