Used 380HP dumper Truck

Overall Dimensions(mm):
8265*2496*3490mm
Year:
2010-2015
Condition:
Second hand
Emission:
EURO II
Horse Power:
380 HP
leave a message

Related products

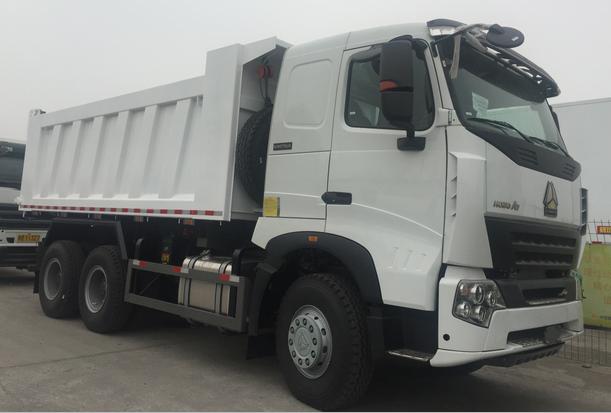

EURO IV Emission and 6x4 Drive mode Used 380HP dumper Truck in 2014 year could be used in kinds of circumstances.




Truck ModelZZ3257N3847N1
Truck BrandSINOTRUK—HOWO A7
Dimension(Lx W xH)(unloaded)(mm)8265*2496*3490
Driving TypeLeft Hand Driving
Cargo body size (L*W*H, mm)

5800*2300*1500

bottom:8mm,side:6mm

Lifting TypeVentral side Lifting
Approaching angle/Departure angle(°)20/26
Overhang(front/rear) (mm)1540/1650
Wheel base (mm)3825+1350
Curb weight(kg)12270
Persons in cab(persons)2
Gross vehicle weight(kg)25000
Max speed(km/h)(km/h)80

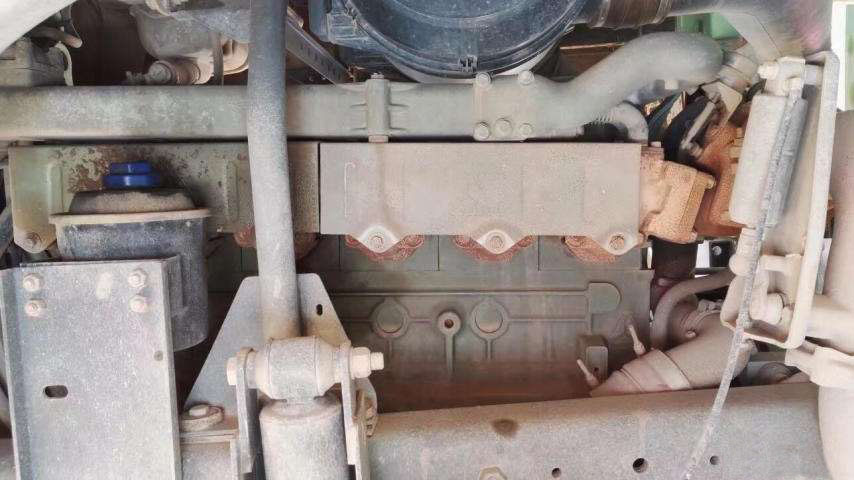

Engine Model

(Steyr technology, made in China)

D10.38-40, water-cooled,four strokes,6 cylinders in line with water cooling, directly injection
Fuel typeDiesel
Horse Power, max(kw/rpm)380HP
EmissionEURO IV
Fuel tanker capacity (L)300
Transmission ModelHW19710 10 forwards and 2 reverse
Steering Model8118 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type.
Clutchsingle disc, dry type, diaphragm spring ;φ430
Service brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Auxiliary brakeThe engine exhaust brake (EVB)
Front axleHF9 Disc Steering with double T-cross section beam
Rear axleAC16 Casting axle housing, central double reduction with differential locks between axles and wheels
ColorWhite, Red, Yellow. according to the customer
Tyre

12.00R20

NO.10+1 Pieces

Electrical systemBattery2X12V/180Ah
Alternator28V-1500kw
Starter7.5Kw/24V
CabA7-W standard cabin, two seats and one bed with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers




Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.


Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.


Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
