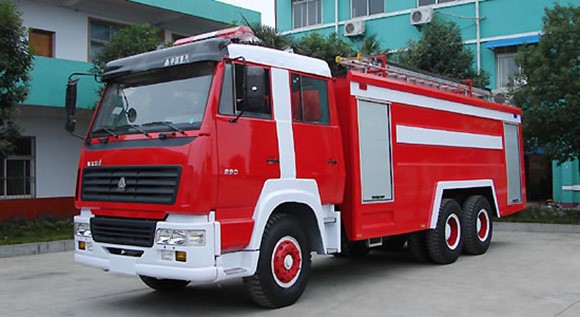

Steyr water tank fire fighting truck Technical Parameters | |||
| Product： | Steyr water tank fire fighting truck | Overall dimension： | 10380×2500×3600 (mm) |
| Chassis model： | CPF02 | Compartment dimension： | ×× (mm) |
| Gross weight： | 25000 (kg) | Approach angle/Departure angle： | 18/12 (°) |
| Rated payload： | 10240 (kg) | Front/rear suspension： | 1560/2870 (mm) |
| Kerb weight： | 14610 (kg) | Max speed： | 85 (km/h) |
| Engine： | WD615.61A WD615.62 WD615.67 WD615.87 | ||
| Displacement： | 9726 9726 9726 9726 (ml) | Power： | 193 196 206 213 (kw) |
| Manufacturer： | Sinotruk Co., Ltd. | ||
| Emission standard： | GB17691-2001 Euro 2,GB3847-2005 | ||
| Axle nos： | 3 | Front tread： | 1939,1958 (mm) |
| Wheelbase： | 4600+1350 (mm) | Rear tread： | 1800/1800,1830/1830 (mm) |
| Tyre nos ： | 10 | Tyre specification： | 11.00-20,11.00R20,12.00-20,12.00R20 |
| Fuel type： | Diesel | Leaf spring nos： | 10/128 |
| Axle load： | Passenger nos | 3 | |
| Remarks： | Tank volume:10.0 m3 | ||
| More pictures： | |||
